Automatic Cold Roll Forming Machine. for Drywall Partition Angle

Automatic Cold Roll Forming Machine. for Drywall Partition Angle

Automatic Cold Roll Forming Machine.
for Drywall Partition Angle

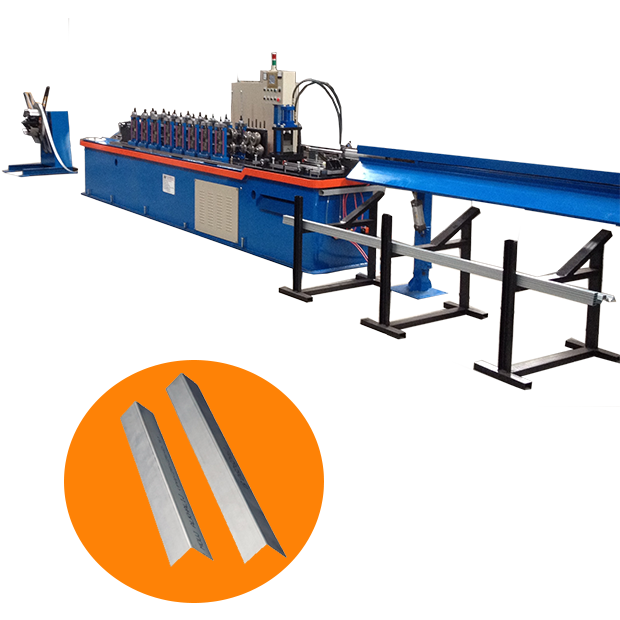

  • Angel-machine and profile.png

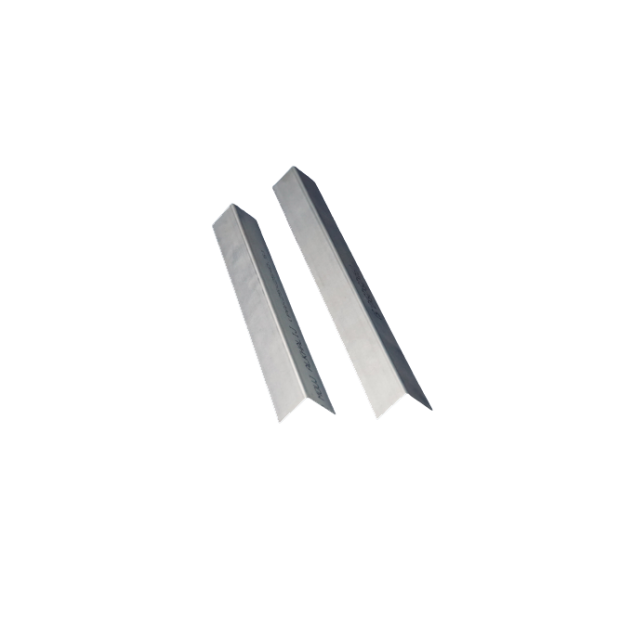

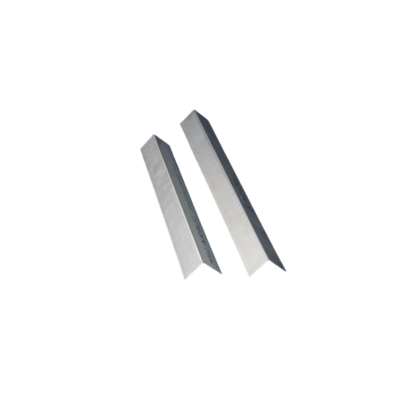

  • Angle-removebg-preview.png

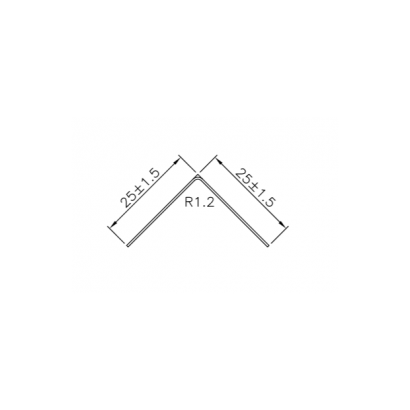

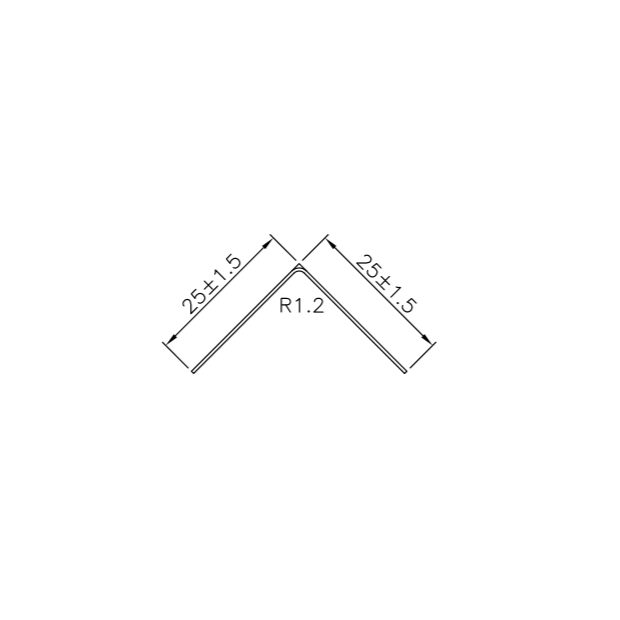

  • angle profile.png
DETAIL

Raw material Pre-painted or galvanized steel Strip thickness: 0.4-0.45mm
Process Coil Roll forming → Automatic cut-off→ Finished products.
Features 1. Forming roller transmitting system: Driven by AC motor on a
    common shaft, individual reduction gear for each roll forming stand.
    All rollers are turning simultaneously.
2.
Forming line speed: 70.0 meters/minute. Forming speed is adjustable.

22-24 Pieces/min in 3 meters long product.
3.
Automatic hydraulic fly shearing cut-off device:
    Designed hydraulic power system for easy and long-hour operation.
4.
Cut-off is in SKD11 die steel, vacuum heat treatment to HRC 58-61°,
    wear-resistance, good rigid structure and long life.
5. Products length: 1.5 – 3.0 meters, length is adjustable.
6.
Length tolerance is ±3.0mm.
7. Special design of cutting tool holder for easy cutting tool change.
Specification A. Single head Uncoiler xone unit.
  1. Loading capacity: 1,100 Kgs
  2. Coil size: O.D. 1,200 mm. I.D. 480 – 510 mm. Width: 180 mm.
  3. Manual coil tightening
  4. Driven by roll forming machine

B. Cold Roll Forming Machine x one unit.
  1. Model: G-240-CL type. (Changeable type)
  2. Forming steps: 10 stations with entry guide stand.
  3. The main machine base is assembled by high-strength steel with precise welding stress
     relief treatment. Each stand will have an individual worm gear reduction, and a
     common drive shaft to drive all rollers running simultaneously.

  4. Main driven motor: 15 HP.
  5. Forming rollers: one full set
  6. Roller shaft: Ø 40mm, in material of S45C mild steel.
     Rollers: in SKD11 die steel with vacuum heat treatment to hardness HRC 58-61,
     wear-resistant and durable.

  7. Forming line speed: 70 meters per minute. Speed is adjustable.
  8. Cooling system for forming rollers: 1 set
  9. product straightener: 1 set

C. Automatic hydraulic fly shearing device x one unit
  1. Cut-off blade is in material of SKD11 with vacuum heat treatment,
      Hardness HRC 58 – 61, wear-resistant, steel structure, long life.

  2. Special designed system gives trouble-free operation.
  3. Cut-off length: 1.5 – 3.0 meters, Length is adjustable. Length tolerance is ±3.0mm.
  4.  Hydraulic pack (5 HP) with accumulator: 1 set.
  5.  Cut-off blade: 1 set.
  6.  Oil cooler: 1 set
  7.  Servo motor: 5.0 KW

D. Product run-out table (4.0 Meter) x one unit.
  1. Run-out table with products carrier.
  2. Stacking device for products stacking and packing: 2 sets.

F. PLC electric control system x one unit.
  1. Mitsubishi PLC controller x 1 set
  2. HMI control panel x 1 set.
  3. Electric voltage will be confirmed before placing order.
