Main Channel

  1. Drywall Partition
  2. Main Channel
Automatic Cold Roll Forming Machine. for Drywall Partition Main Channel

Automatic Cold Roll Forming Machine. for Drywall Partition Main Channel

Automatic Cold Roll Forming Machine. for Drywall Partition Main Channel

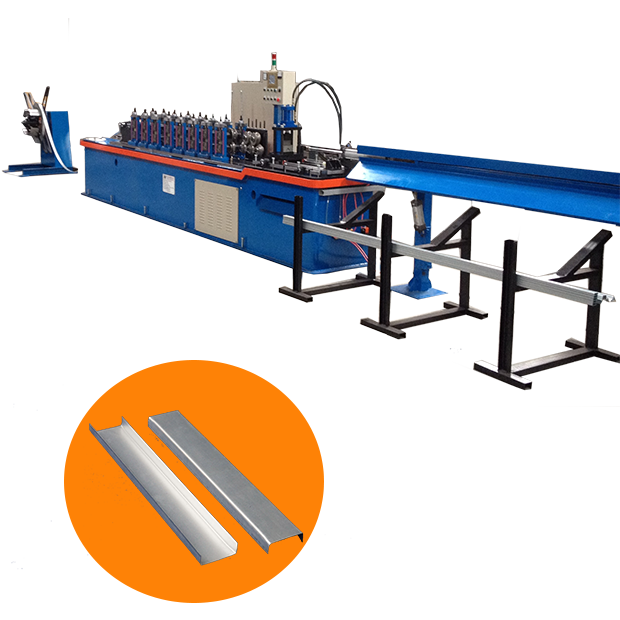

Main Channel-machine and profile.png
/
Main Channel.png
/

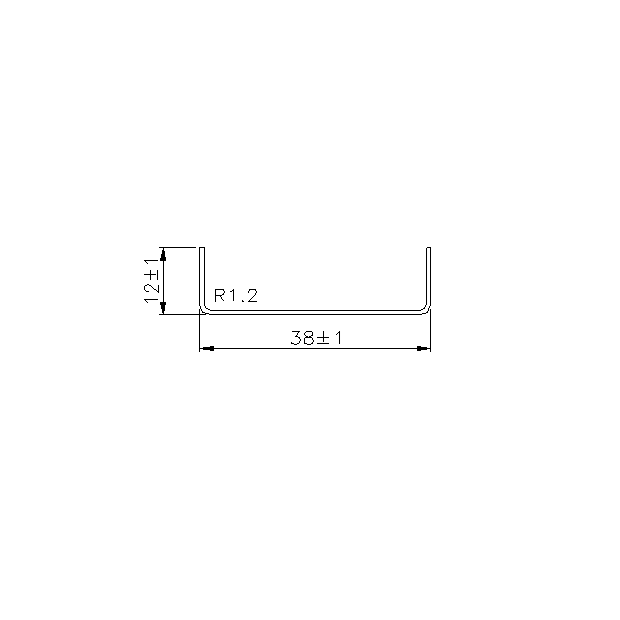

main channel profile.png
/
  • Main Channel-machine and profile.png
  • Main Channel.png
  • main channel profile.png
DETAIL
Raw Material Galvanized steel, strip thickness: 0.4 ~ 1.0 mm
Process Coil→Roll forming →flying cut-off after forming → Finished products.
Features 1. Forming roller transmitting system: Driven by AC motor on a common shaft,
    individual reduction gear for each roll forming stand.
    All rollers are running simultaneously.
2. Forming line speed: 70.0 meters/minute. Forming speed is adjustable.
    22-24 Pieces/min in 3 meters long product.
3. Automatic hydraulic fly shearing cut-off device:
    Designed hydraulic power system for easy and long-hour operation.
4. Cut-off is in SKD11 die steel, vacuum heat treatment to HRC 58-61°,
    wear-resistance, good rigid structure and long life.
5. Products length: 1.5 – 3.0 meters, length is adjustable.
6. Length tolerance is ±3.0mm.
7. Special design of cutting tool holder for easy cutting tool change.
Specification A. Single head Uncoiler x one unit.
  1. Loading capacity: 1,100 Kgs
  2. Coil size: O.D. 1,200 mm. I.D. 480 – 510 mm. Width: 180 mm.
  3. Manual coil tightening
  4. Driven by roll forming machine
B. Cold Roll Forming Machine x one unit.
  1. Model: G-280-CL type. (fixed type)
  2. Forming steps: 8 stations with entry guide stand.
  3. The main machine base is assembled by high-strength steel with precise welding
    stress relief treatment. Each stand will have an individual worm gear reduction,
    and a common drive shaft to drive all rollers running simultaneously.
  4. Main driven motor: 15 HP.
  5. Forming rollers: one full set
  6. Roller shaft: Ø 45mm, in material of S45C mild steel.
      Rollers are in SKD11 die steel with vacuum heat treatment to
      hardness HRC 58-61, wear-resistant and durable.
  7. Forming line speed: 70.0 meters/minute. Speed is adjustable.
  8. Cooling system for forming rollers: 1 set
  9. product straightener: 1 set
C. Automatic hydraulic fly shearing device x one unit
  1. Cut-off blade is in material of SKD11 with vacuum heat treatment,
       Hardness HRC 58 – 61, wear-resistant, steel structure, long life.
   2. Special designed system for trouble-free operation.
   3. Cut-off length: 1.5 – 3.0 meters, Length is adjustable.
       Length tolerance is ±3.0mm.
   4. Hydraulic pack (5 HP) with accumulator: 1 set.
   5. Cut-off blade: 1 set.
   6. Oil cooler: 1 set
   7. Servo motor: 5.0 KW
D. Product run-out table (4.0 Meter) x one unit.
   1. Run-out table with products carrier.
   2. Stacking device for products stacking and packing: 2 sets.
F. PLC electric control system x one unit.
   1. Mitsubishi PLC controller x 1 set
   2. HMI control panel x 1 set.
   3. Electric voltage will be confirmed before placing order.
